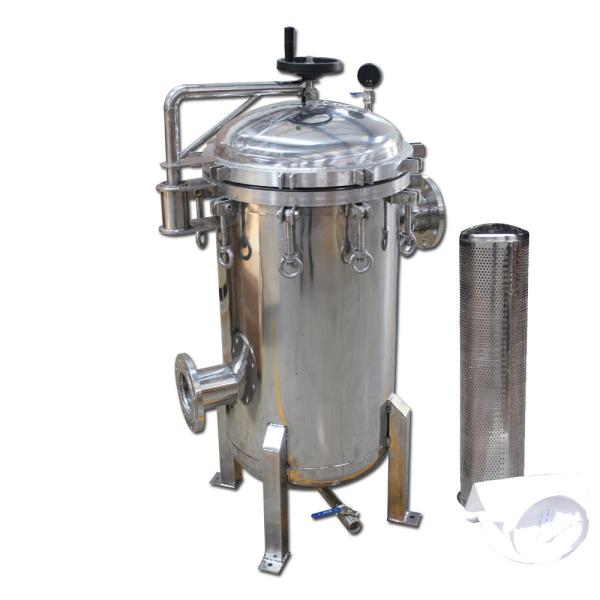

10 Micron Complete Polish Stainless Steel Housing Bag Filter For Edible Oil

Model Number : 2-550

MOQ : 1set

Price : $1600/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000SETS/PER YEAR

Delivery Time : 30 working days

Packaging Details : wooden carton

Max.pressure : 150psi

Dimension : #1 #2 #3 #4

filtration precision : 0.1um,0.22um,1um,3um,5um,10um

Bag size : DN100mm(4 inch)

Design pessure : 6bar

weight : 20 kg

Flow rate : 140m3/hr

Working temperature : 90~250℃

Filtration accuracy : 1μm ~ 100μm

Contact Now

Model	Flow rate (T/H)	Inlet and outlet diameter(mm)	Size	Specification	Bag specification	Filter area (m2)
1-219	20	DN50	219*410	Single bag	180*410	0.23
2-219	40	DN65	219*810	Single bag	180*810	0.46
2-400	50-80	DN80	400*810	Two bags	180*810	0.92
2-500	120	DN100	500*810	Three bags	180*810	1.38
2-600	150	DN125	600*810	Four bags	180*810	1.8
2-650	160	DN125	650*810	Five bags	180*810	1.84
2-750	200	DN150	750*810	Six bags	180*810	2.3
2-800	220	DN150	800*810	Eight bags	180*810	2.5
2-850	240	DN200	850*810	Nine bags	180*810	2.76

10 Micron Complete Polish Stainless Steel Housing Bag Filter For Edible Oil

Q1 : Where is your factory located?
A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

Q2 : Are you an integrated supplier for industrial filter machine ?
A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

Q3 : How about the quality control in your factory?
A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow

up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully

before shipment.

Q4 : Will you offer the pre-sales service?
A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology

also water.

electrical,machine layout in factory, etc.

Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the

machine?
A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine

and support training to workers also.

Q6 : What is the delivery time of the machine?
A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery

time of standard machine could be within 10-30 days

Q7 : What is the warranty of the machine ?
A7 : The whole machine’s warranty period is 12 months and key parts will be depended.

Q8 : Do you provide any spare parts with machine?
A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines

Wholesale 10 Micron Complete Polish Stainless Steel Housing Bag Filter For Edible Oil from china suppliers

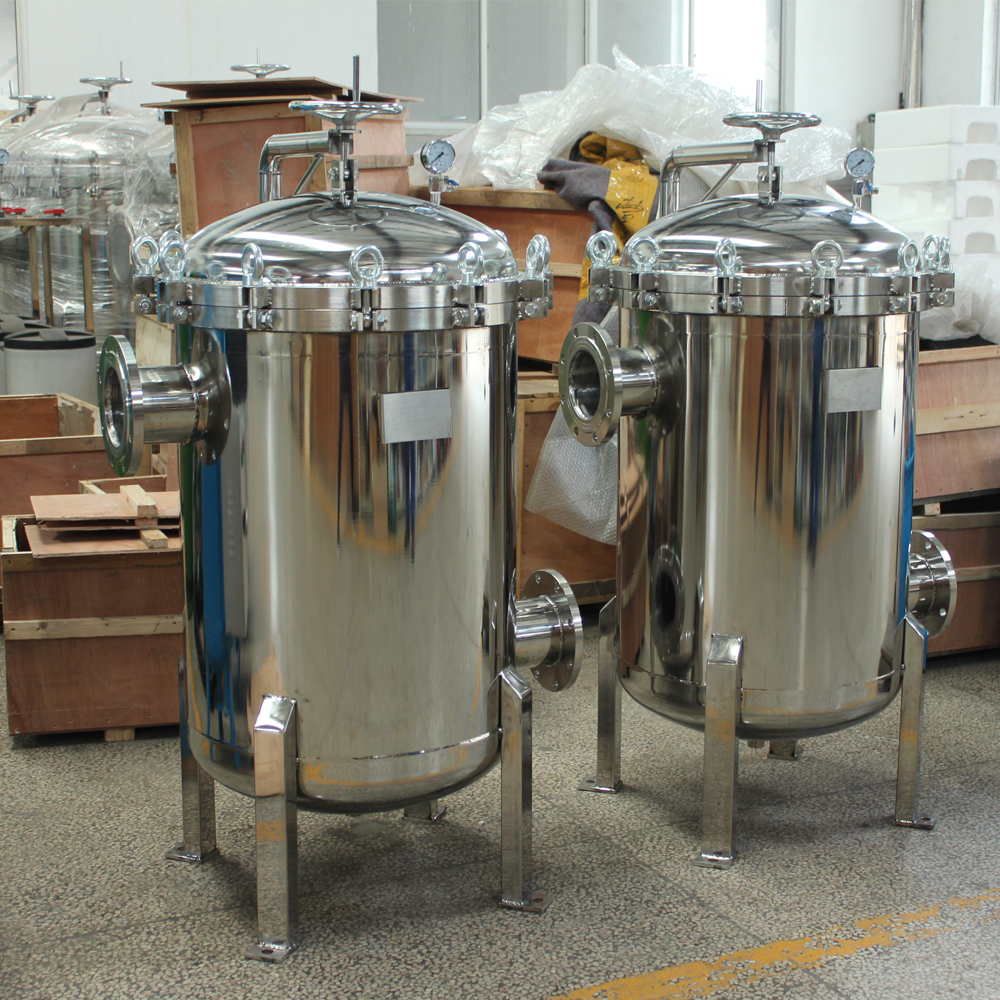

10 Micron Complete Polish Stainless Steel Housing Bag Filter For Edible Oil Images
